TBM5KIT21
Termékszám:
TBM5KIT21
11
TBM5KIT21
Termékszám:
TBM5KIT21

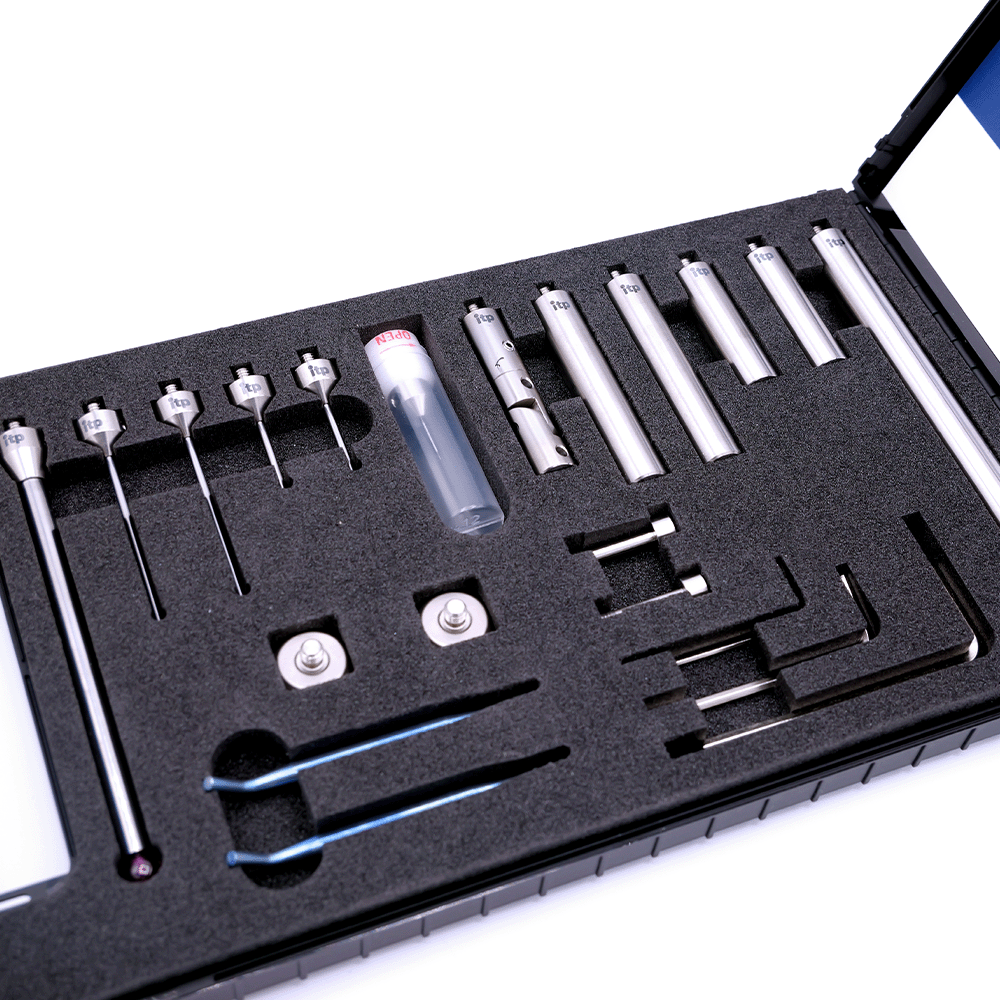

M5 styli set for Zeiss Vast XT (21 pieces). The basic set includes a selection of commonly used styli with trusted carbide stems and ruby balls, ranging in size from Ø0.5 mm to Ø8.0 mm. It is complemented by various connecting components and lightweight, rigid titanium extensions, as well as a tool kit.

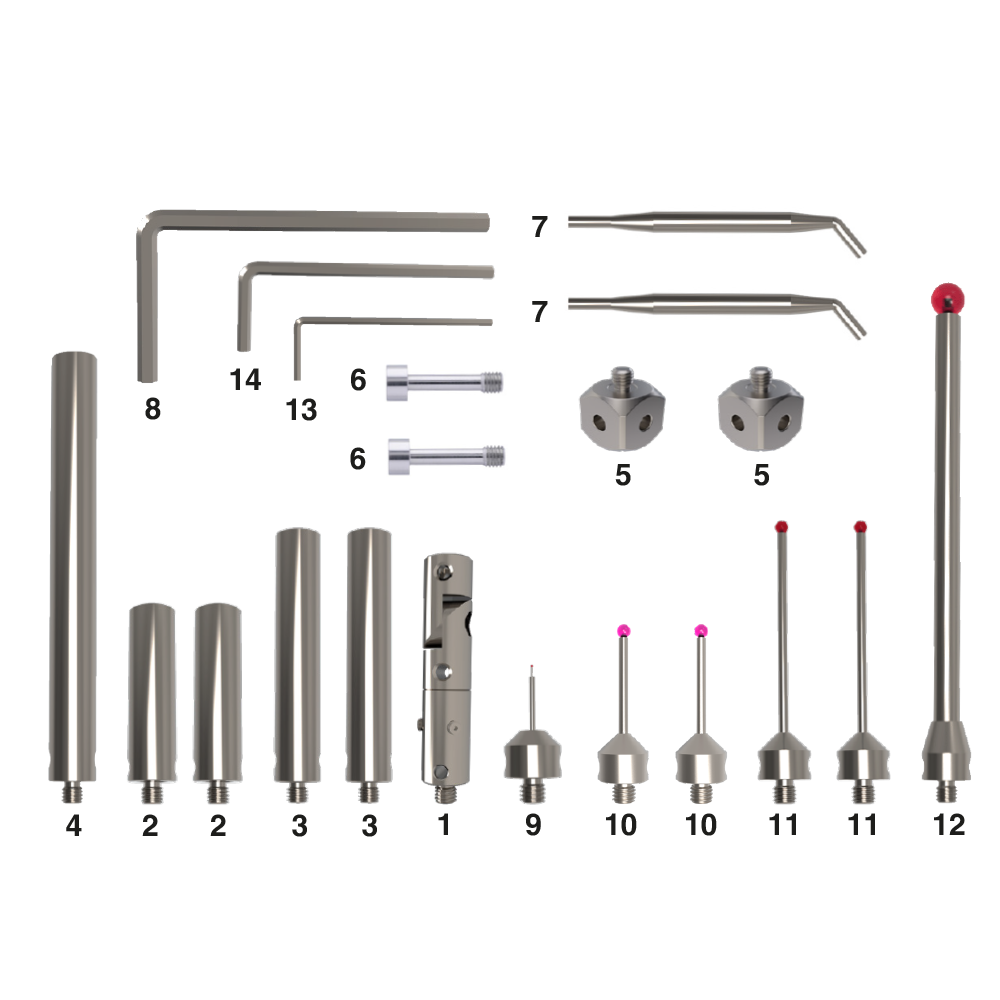

Set content
| Pos. | Item number | Qty. | DK | ML | ML1 | DG | DG1 | L | L1 | DS | DS1 | B | SW | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | DGM500011051 | 1 | - | - | - | 11.00 | 11.00 | 51.00 | - | - | - | - | - | 23.20 |
| 2 | VTM500011040 | 2 | - | - | - | 11.00 | - | 40.00 | - | - | - | - | - | 16.40 |
| 3 | VTM500011060 | 2 | - | - | - | 11.00 | - | 60.00 | - | - | - | - | - | 14.00 |
| 4 | VTM500011100 | 1 | - | - | - | 11.00 | - | 100.00 | - | - | - | - | - | 17.90 |
| 5 | WTM500015000 | 2 | - | - | - | - | - | - | - | - | - | 15.00 | - | 12.00 |
| 6 | SIM500021000 | 2 | - | - | - | 8.00 | - | 26.00 | 21.00 | - | - | - | 4.00 | 3.40 |
| 7 | MIMO02900070 | 2 | - | - | - | 2.90 | - | 70.50 | - | - | - | - | - | 7.70 |
| 8 | WSDD911SW040 | 1 | - | - | - | - | - | - | - | - | - | - | 4.00 | 9.80 |
| 9 | NHM500511022 | 1 | 0.50 | 13.00 | 2.50 | 11.00 | - | 22.00 | - | 1.00 | 0.30 | - | - | 5.70 |
| 10 | THM503011033 | 2 | 3.00 | 23.50 | - | 11.00 | - | 33.50 | - | 2.00 | - | - | - | 4.30 |
| 11 | THM503011058 | 2 | 3.00 | 48.00 | - | 11.00 | - | 58.00 | - | 2.00 | - | - | - | 5.50 |
| 12 | THM508011114 | 1 | 8.00 | 101.50 | - | 11.00 | - | 114.50 | - | 6.00 | - | - | - | 45.60 |
| 13 | WSDD911SW015 | 1 | - | - | - | - | - | - | - | - | - | - | 1.50 | 0.80 |
| 14 | WSDD911SW025 | 1 | - | - | - | - | - | - | - | - | - | - | 2.50 | 3.00 |
