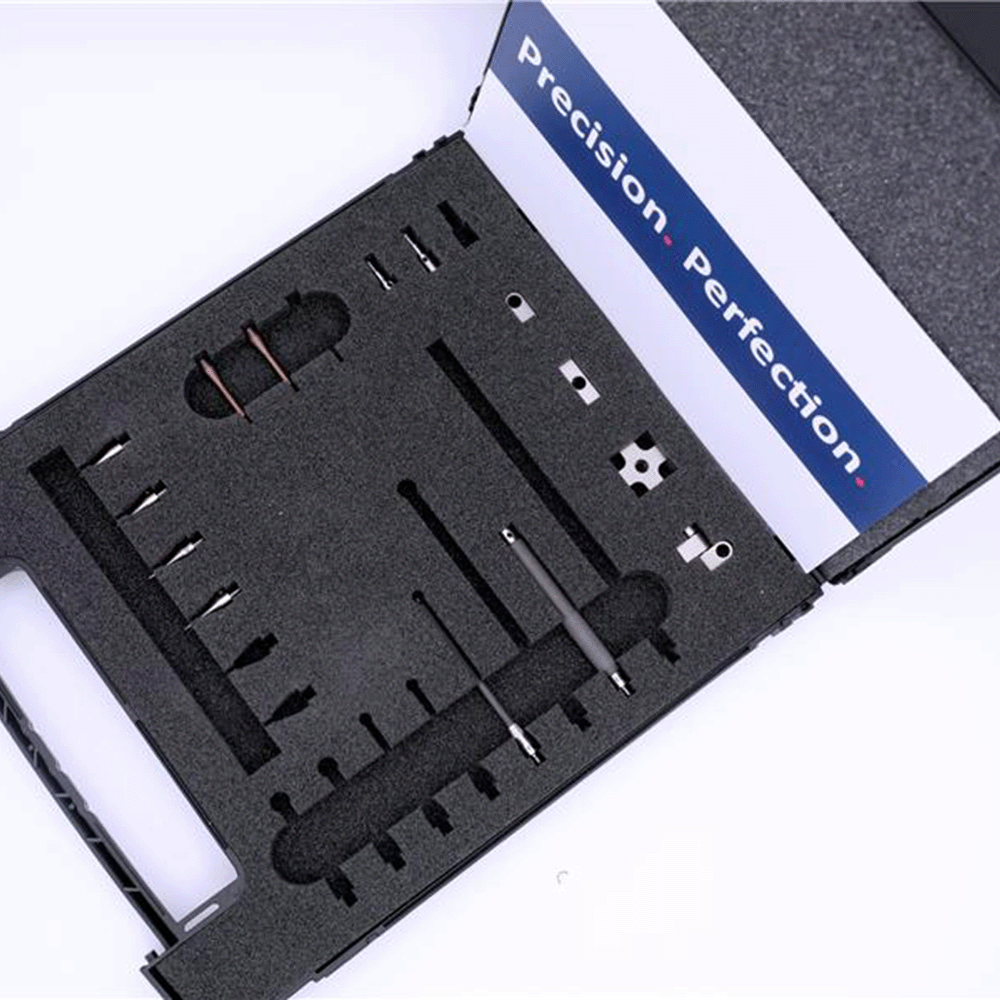

M3 styli set for Zeiss Vast XXT (14 pieces). The medium-sized set includes a selection of commonly used styli with robust yet ultra-light carbon fibre stems, as well as trusted carbide stems with ruby balls ranging in size from Ø0.5 mm to Ø3.0 mm. The set also includes various components for assembling one- to four-arm star styli, as well as matching wrenches.

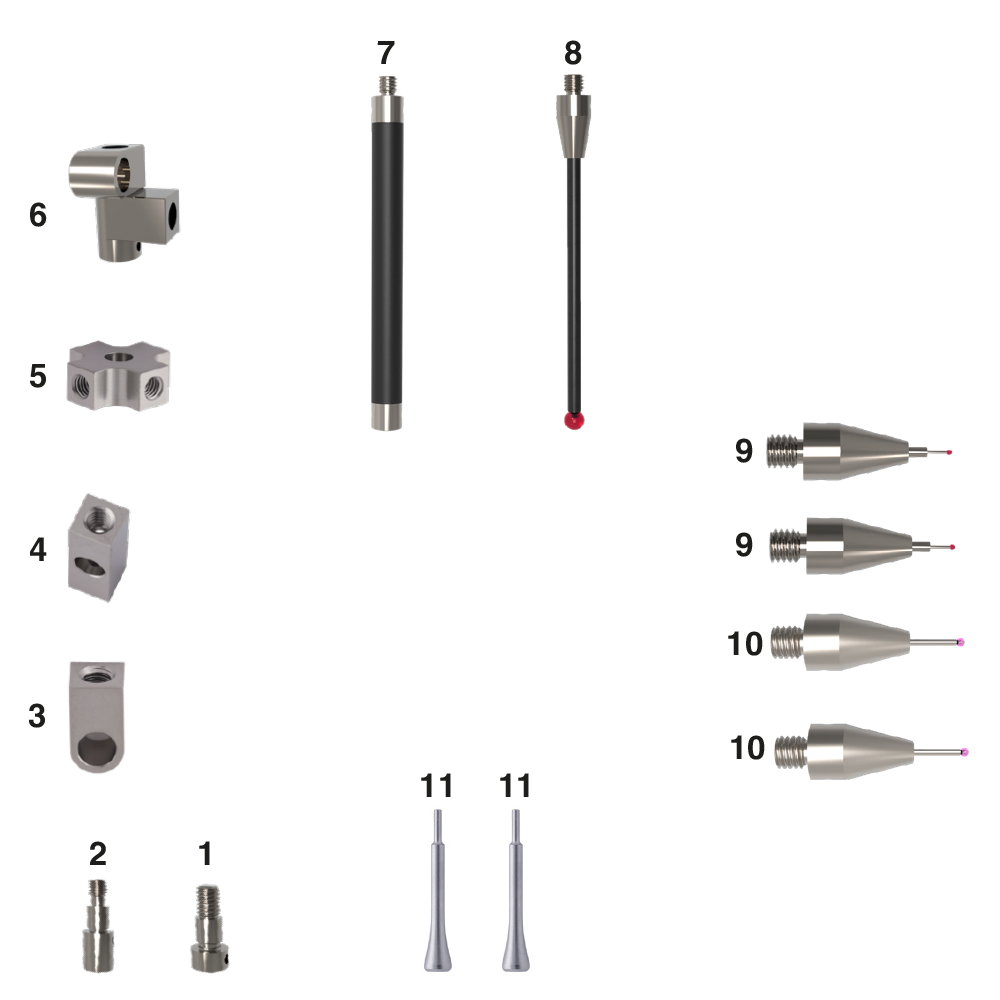

Set content
| Pos. | Item number | Qty. | DK | ML | ML1 | DG | L | DS | DS1 | D | B | Weight (g) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | SIM300005008 | 1 | - | - | - | 5.00 | 8.00 | 3.50 | - | - | - | 0.40 |
| 2 | SIM3M3005008 | 1 | - | - | - | 5.00 | 8.00 | 3.50 | - | - | - | 0.60 |
| 3 | WTM300005006 | 1 | - | - | - | - | 6.50 | 3.50 | - | - | 5.00 | 0.60 |
| 4 | WTM318005013 | 1 | - | - | - | - | 13.00 | 3.50 | - | - | 5.00 | 1.00 |
| 5 | WTM300005013 | 1 | - | - | - | - | 5.00 | 3.50 | - | - | 13.00 | 1.70 |
| 6 | DTM300005010 | 1 | - | - | - | 5.00 | 10.20 | 3.50 | - | 5.00 | 5.00 | 1.60 |
| 7 | VCM300005050 | 1 | - | - | - | 5.00 | 50.00 | 5.00 | - | - | - | 1.70 |
| 8 | TCM303005050 | 1 | 3.00 | 41.00 | - | 5.00 | 50.00 | 2.00 | - | - | - | 0.90 |
| 9 | THM300505013 | 2 | 0.50 | 4.00 | 2.30 | 5.00 | 13.00 | 1.00 | 0.30 | - | - | 0.60 |
| 10 | THM300805014 | 2 | 0.80 | 5.00 | - | 5.00 | 14.00 | 0.60 | - | - | - | 0.60 |
| 11 | MIMO01200023 | 2 | - | - | - | 1.20 | 23.00 | - | - | - | - | 0.70 |
