NH M5 003 11 021
Termékszám:
NHM500311021
11
Suitable for Zeiss: 626115-0030-022
Suitable for Zeiss: 626115-0030-022
NH M5 003 11 021
Termékszám:
NHM500311021
47,00 EUR*
Elérhető, szállítási idő 1-3 days

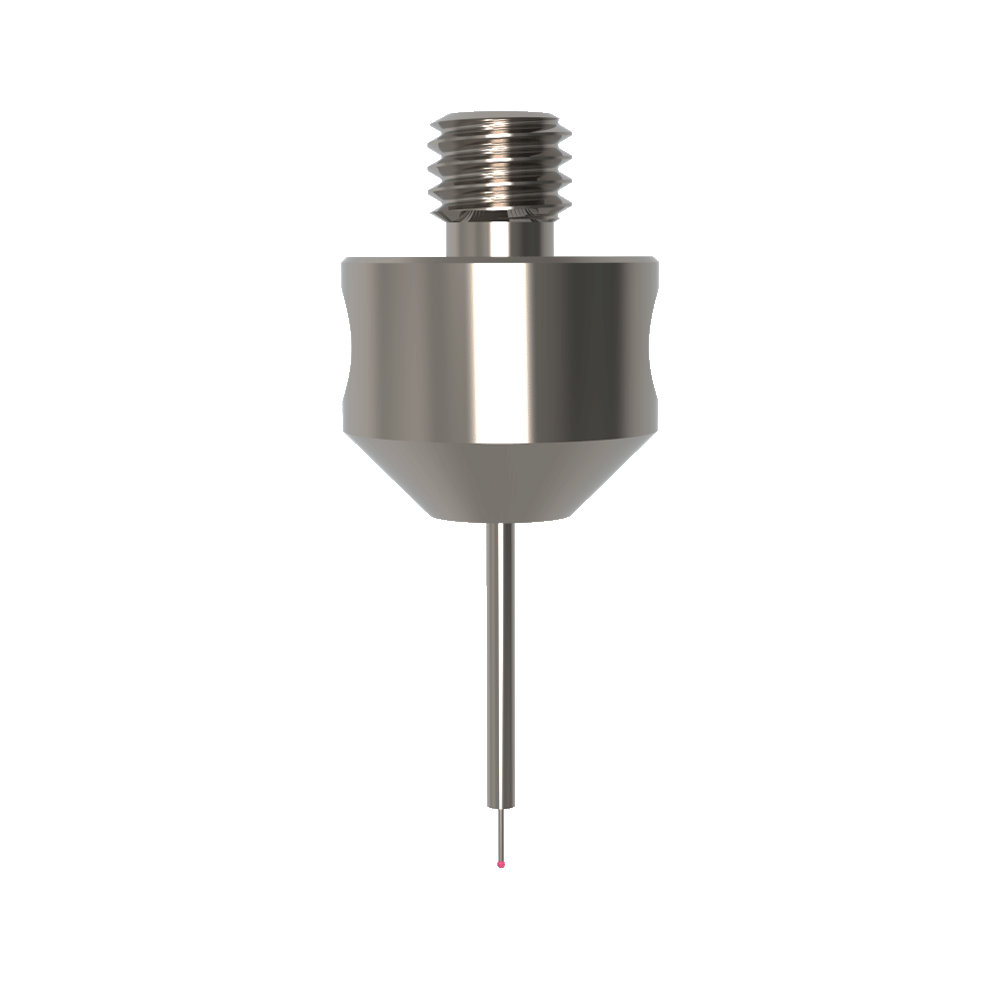

Straight Styli; base: stainless steel; stem: carbide; ball: ruby
Straight stylus for everyday standard use.
The extremely rigid tungsten carbide stem allows a wide range of dimensions. The stem can be single or multi-stepped.
Ruby balls of the highest quality from Ø0,2mm to Ø1,5mm are used for these styli.
Other sizes can be requested via the configurator or by e-mail.

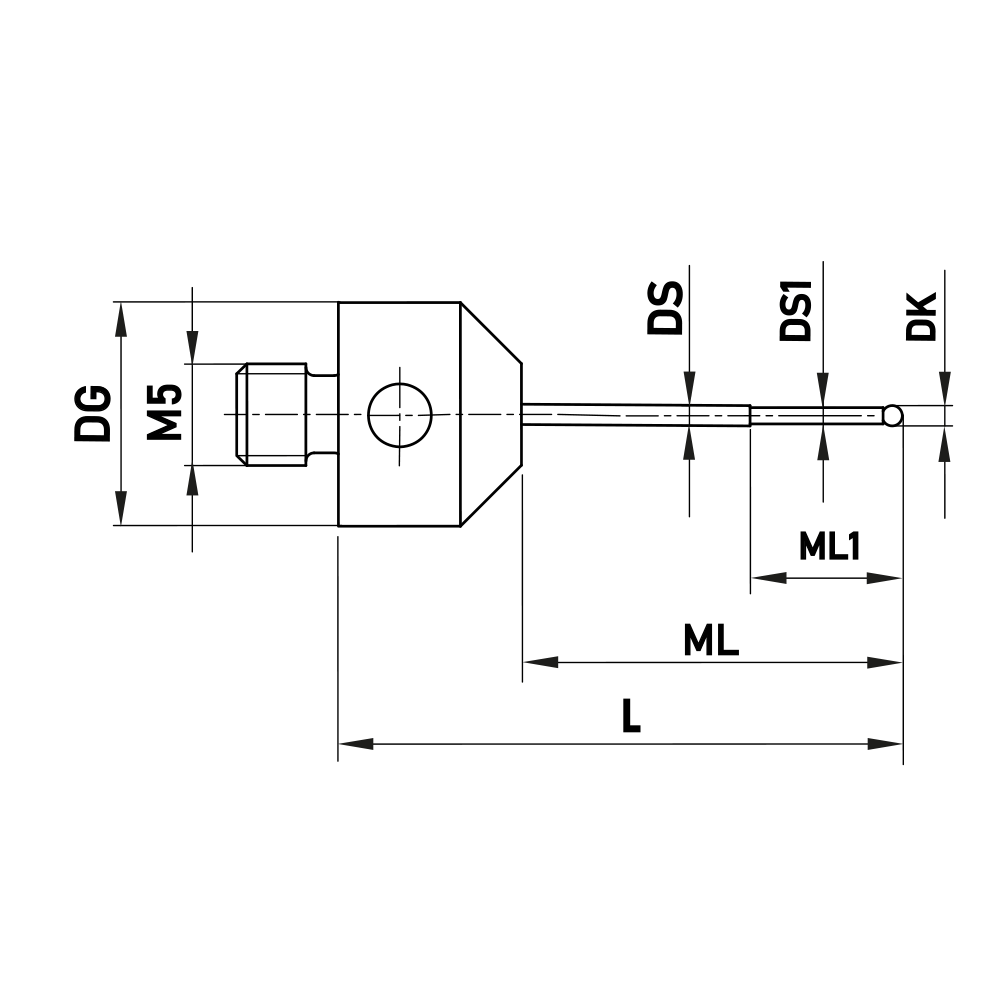

| Thread size: | M5 |
|---|---|
| DK: | 0.3 |
| L: | 21.8 |
| DG: | 11.0 |
| ML: | 12.8 |
| ML (1): | 2.3 |
| DS: | 1.0 |
| DS (1): | 0.2 |
| Stem Material: | carbide |
| Base Material: | stainless steel |
| Probe ball material: | ruby |
| Súly: | 5.7 |
| Compatible with: | Zeiss |
| Zeiss No.: | 626115-0030-022 |
